16 Garage Ceiling Storage Ideas to Use Wasted Overhead Space

Discover 16 garage ceiling storage ideas, from pulley hoists to overhead racks, that turn wasted space into safe, accessible storage.

Your garage floor is full. Your walls are full. But the space above your head is still doing absolutely nothing.

That unused ceiling space can store bikes, kayaks, ladders, tires, seasonal bins, and bulky gear without taking away another inch of parking or wall space.

These 16 Garage Ceiling Storage ideas show you how to turn that dead space into useful overhead storage, with options ranging from simple pulley hoists to retractable and electric systems.

🚗 Why Is Garage Ceiling Storage Worth Using?

Garage ceiling storage is worth using when your walls and floor are already packed. It moves bulky or seasonal items overhead while keeping your parking and walking areas clear.

The best candidates are things you do not need every day, such as:

• Holiday decorations
• Bikes
• Kayaks
• Ladders
• Seasonal tires
• Camping gear
• Coolers
• Storage bins

The important part is safety. Ceiling storage must be attached to suitable structural support and loaded according to the specific system’s rating.

Now, let’s look at the 16 overhead systems that can reclaim that wasted space.

🏗️ What Are the Best Garage Ceiling Storage Ideas?

1. 💰 Overhead Fixed Rack Platform

A 4 × 8 foot overhead rack gives you a large storage surface without sacrificing floor area. One current FLEXIMOUNTS example is priced around $144 and rated for 600 pounds, with an adjustable ceiling drop from 22 to 40 inches.

That can be dramatically cheaper than building a comparable amount of floor cabinetry, especially when your main goal is storing bulky seasonal bins rather than displaying tools.

The important distinction is that the 600-pound figure belongs to that specific rack under its specified installation conditions. It is not a statement that your garage ceiling can safely carry 600 pounds.

Mount the rack according to the manufacturer’s instructions and directly into suitable structural members.

Load capacity: Up to 600 lbs for the referenced FLEXIMOUNTS model
Mounting: Ceiling structure / joist-supported installation
Height range: 22–40 in. below ceiling
Why it works: Adds a large storage platform without consuming garage floor space.

2. 🚲 Manual Pulley Bike Hoist

Two hooks cradle the bicycle while a rope passes through a pulley system mounted overhead. Pull the rope and the bike rises; engage the locking mechanism and it stays there.

That mechanical advantage is the whole point.

A Racor-style ceiling bike lift, for example, is rated for 50 pounds, works with ceilings up to 12 feet, and is designed to mount into ceiling joists.

The system replaces a bike sitting on the floor and eliminates the need to lift the entire bicycle overhead by hand.

The caveat is simple: the ceiling attachment matters just as much as the hoist rating.

Verdict: A relatively inexpensive pulley hoist can turn a 50-pound bike into overhead storage without needing a ladder every time you ride.

For another manufacturer example, Pan Taiwan Ceiling Bicycle Lifter lists a 50-pound rating and ceiling-mounted pulley mechanism.

3. 🔄 Retractable Ceiling Storage Rack

Climbing a ladder to load an overhead platform is where many otherwise clever storage systems become annoying.

A retractable rack changes the process. Instead of carrying heavy bins up to ceiling height, the platform lowers toward you, allowing you to load it at a more comfortable height before raising it again.

The CeilingSAM Storage Elevator uses a drill-powered mechanism rather than a built-in motor. Its manufacturer describes lowering the platform to knee or waist height for loading and then raising it overhead.

Installation starts with identifying the structural mounting points. Next, assemble and level the lift platform. Finally, set the upper and lower travel positions and test it unloaded before adding storage.

That extra accessibility is the main reason to choose a retractable design.

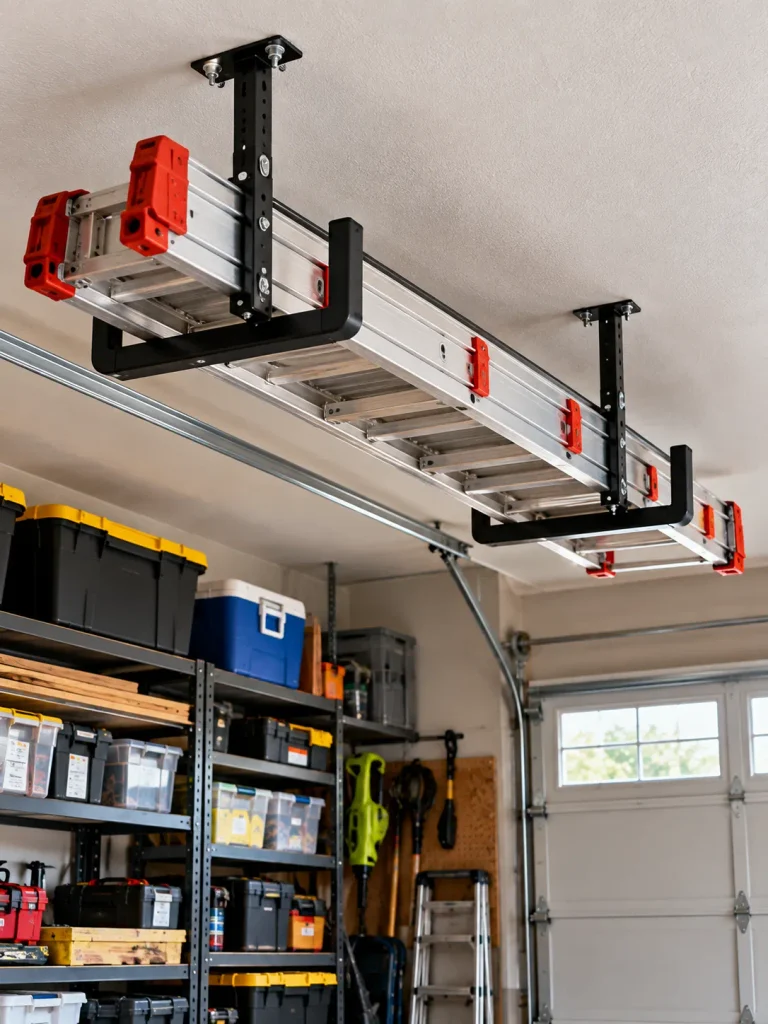

4. 🪜 Ceiling-Mounted Ladder Rack

A ladder leaning in a garage corner creates a surprisingly awkward obstruction.

Move it overhead and that corner becomes usable again.

A StoreYourBoard Hi-Port 2 ceiling ladder rack supports up to 150 pounds total, with 75 pounds on each side. Its adjustable storage clearance ranges from 10 to 18 inches.

Load: Up to 150 lbs | Mount: Ceiling joists / structural ceiling points | Best for: Ladders and long bulky equipment

The rack is particularly useful when you use a ladder only occasionally. It keeps a long object completely away from the vehicle and walking area.

Do not position it where the garage door or opener can contact the ladder.

5. 📦 Overhead Bin Storage Rack

Unlike a simple hook, an overhead platform lets you store several containers together. That makes it a better choice when your clutter consists of dozens of seasonal items rather than one large object.

For example, Proslat’s ProRack is rated for 800 pounds when properly mounted to studs, according to the manufacturer’s specifications.

That is the sort of system you can dedicate to labeled storage totes, camping equipment, holiday decorations, or other bulky items.

The comparison is straightforward:

Choose bins on a platform when you have many smaller items.

Choose a dedicated hoist when you have one large object that needs regular raising and lowering.

Do not automatically load a platform to its maximum rating. The actual ceiling structure, fasteners, rack configuration, and load distribution all matter.

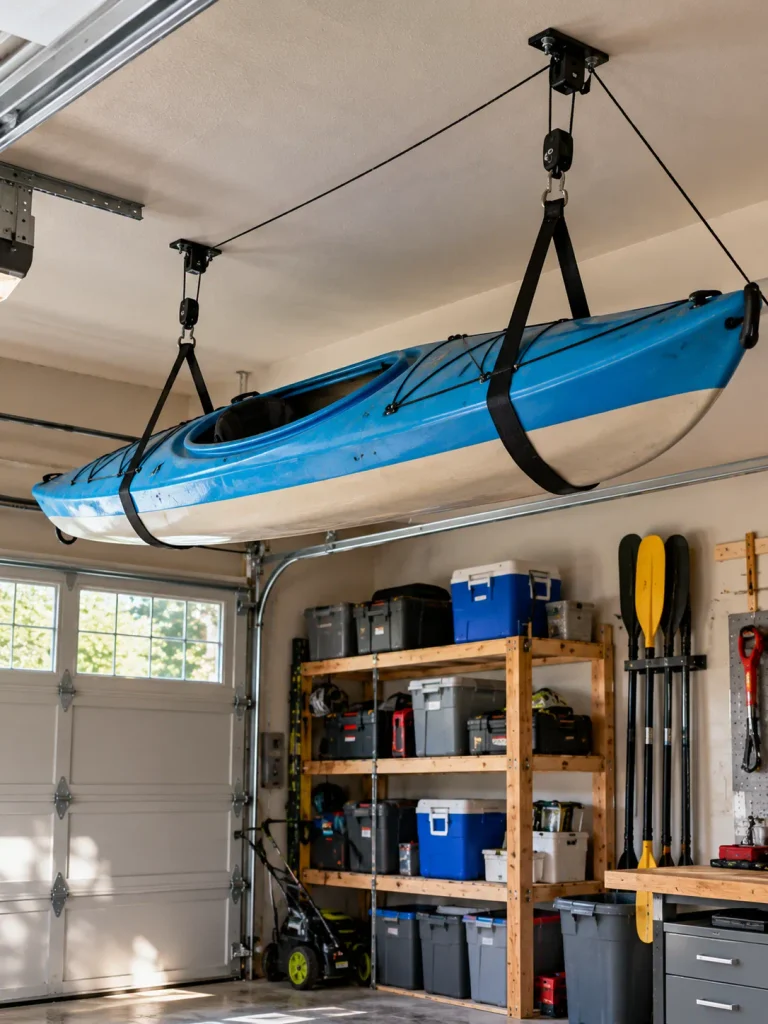

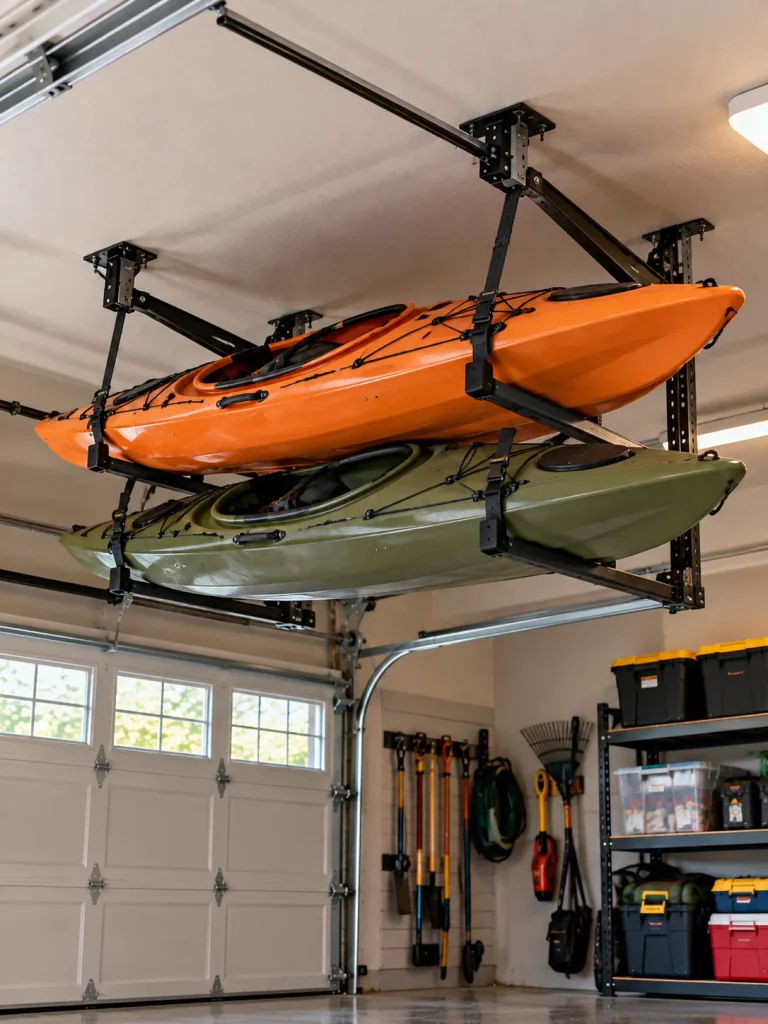

6. 🛶 Kayak or Paddleboard Ceiling Hoist

It is Saturday morning. You want to get the kayak onto the car.

Normally, that means moving the boat from wherever it is leaning, maneuvering around the garage, and trying not to hit three other objects.

A ceiling hoist changes the starting point.

StoreYourBoard’s kayak hoist is rated to support up to 150 pounds and uses a 2:1 mechanical advantage, meaning the hoist does part of the lifting work. The company says its brackets can mount with either parallel or perpendicular ceiling joists.

You lower the straps, secure the kayak, raise it, and leave the floor open.

Verdict: A dedicated kayak hoist makes the most sense when a large boat is stealing permanent garage floor space.

7. 🛞 Ceiling Tire Rack

The most common way people ruin overhead tire storage is by treating the rack’s load rating as the only number that matters.

Four mounted tires can be substantially heavier than a few plastic storage bins.

The correct approach is to calculate the combined load of the tires, rack, and hardware, then confirm that the specific ceiling system and structural attachment can handle it.

For comparison, Proslat states that its dedicated tire configuration supports up to 400 pounds for four tires, while its broader ProRack system has an 800-pound rating when properly mounted to studs.

The result should be a restrained, stable storage position rather than a suspended pile of wheels.

Never improvise a ceiling tire system from hardware that was not designed for overhead storage.

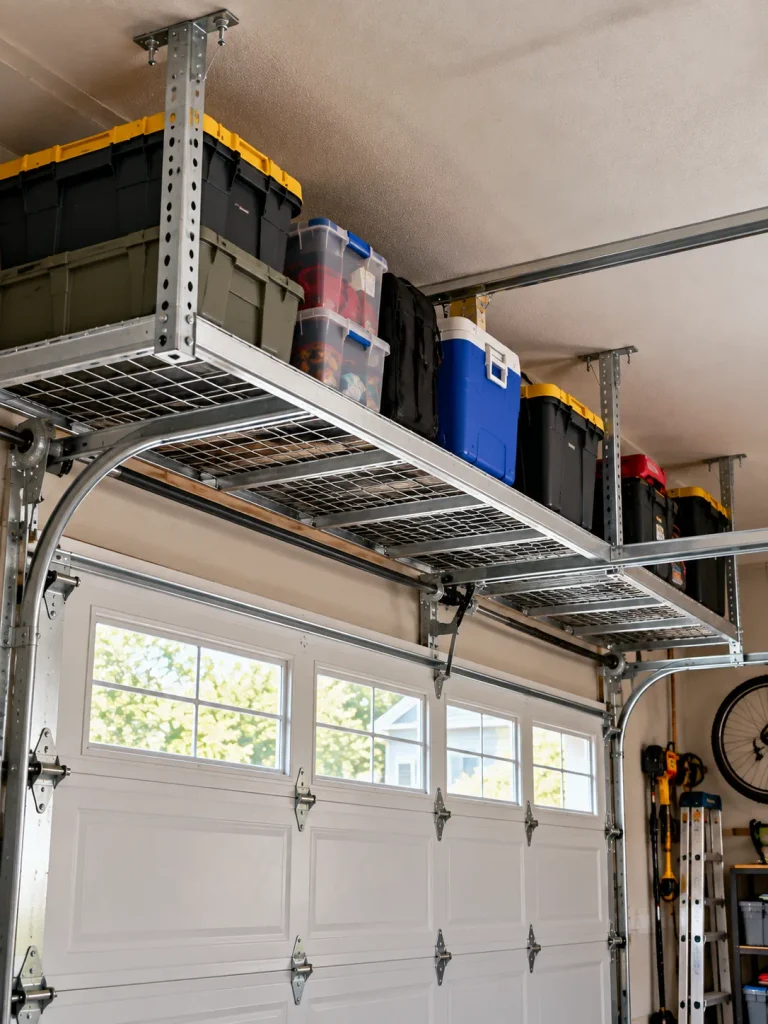

8. 🚪 Overhead Garage Door Track Shelf

Great for the dead zone above the garage door.

That narrow area can be valuable when the rest of the garage is already occupied, but the rack must be positioned carefully so the moving door and hardware have unrestricted clearance.

Load: About 600 lbs for a comparable rated overhead platform | Mount: Structural ceiling members | Best for: Seasonal bins and items stored above the door zone

A current FLEXIMOUNTS overhead rack, for example, offers a 600-pound rated capacity and adjustable 22-to-40-inch ceiling drop.

Measure the door’s complete travel before installing anything.

The best rack in the world is useless if the garage door tries to fight it.

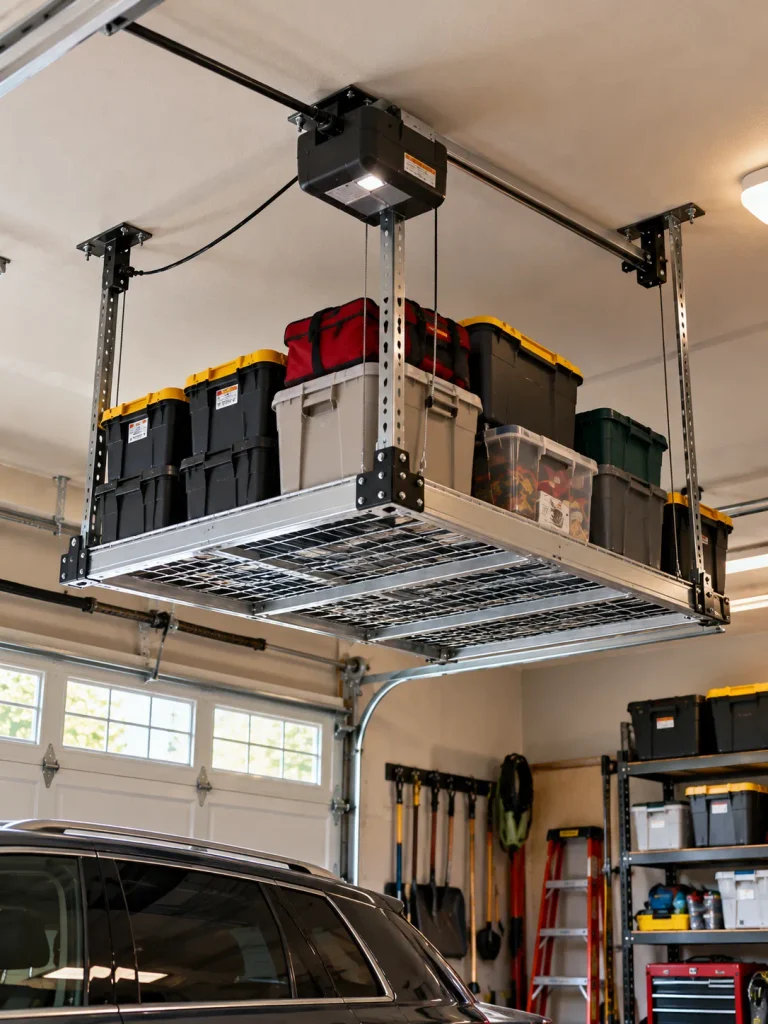

9. ⚡ Electric Ceiling Lift System

Manual lifting becomes less attractive when the stored object gets heavier or you need to lower it regularly.

A powered system changes the experience: press a control, lower the platform, load the item, and raise it again.

Dura-Lift’s Multi-Purpose Lifter is an example of a single-motor electric ceiling lift rated at 100 pounds. The manufacturer describes it as an app-controlled system designed for overhead storage.

Now compare the economics.

A basic manual hoist can cost only a few dozen dollars. A powered system can cost several hundred dollars, but that premium buys convenience and reduces the need for manual lifting.

Load capacity: 100 lbs for the referenced Dura-Lift model
Mounting: Structural ceiling support
Height range: Depends on installation and cable travel
Why it works: Push-button lifting makes frequently accessed overhead gear easier to handle.

10. 🪜 Ceiling Platform With Access Ladder

A fixed ceiling platform works best when the stored objects are light and rarely needed.

The mechanism is simple: the platform remains overhead, while a suitable access ladder lets you reach the containers when necessary.

The advantage is fewer moving parts.

There is no pulley rope to manage and no motor to maintain.

The disadvantage is access. You must still climb to the storage height, which makes this better for seasonal decorations than something you need every weekend.

Verdict: Choose a fixed platform when simplicity matters more than frequent access; skip it for heavy items you regularly need to lower.

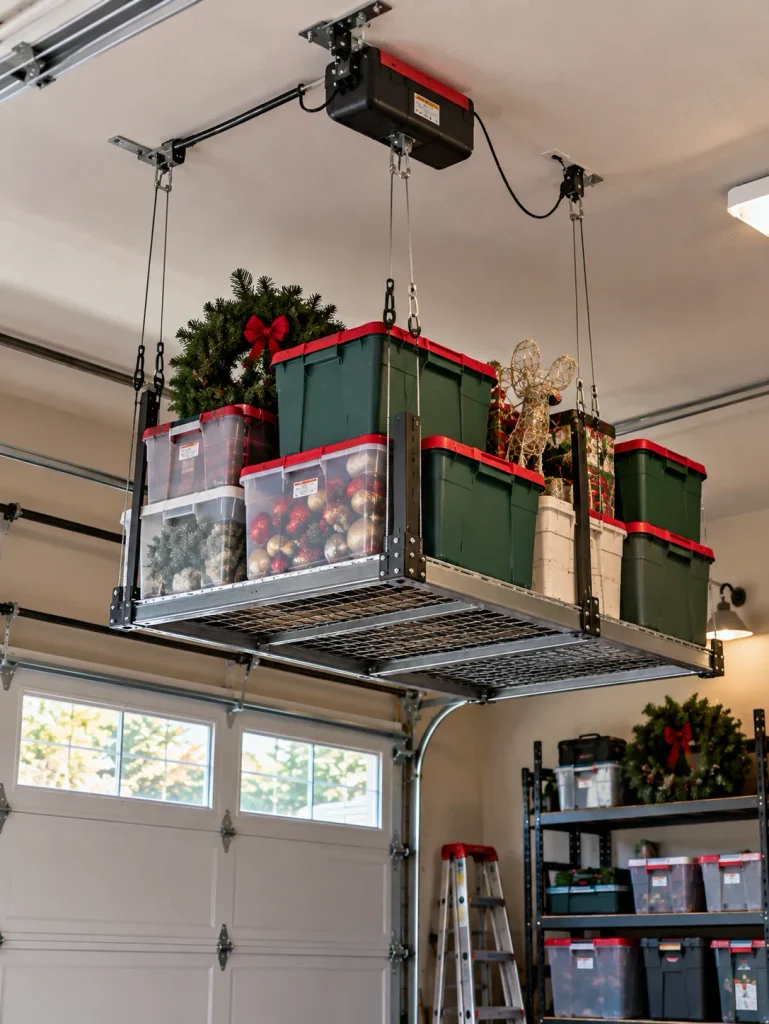

11. 🎄 Hoist for Seasonal Decor Bins

Imagine the week after New Year’s.

The decorations are packed away, the garage needs to hold the car again, and the giant bins are sitting exactly where the vehicle wants to park.

A ceiling hoist gives those containers a temporary home above the vehicle.

A 100-pound-rated ceiling storage hoist from Allied International uses a rope-and-pulley mechanism, includes straps and hardware, and is designed for ceilings up to 14 feet.

For seasonal bins, use several smaller containers instead of one enormous box.

That makes the load easier to distribute and the contents easier to manage.

The best result is a garage that changes storage configuration with the seasons without filling the floor.

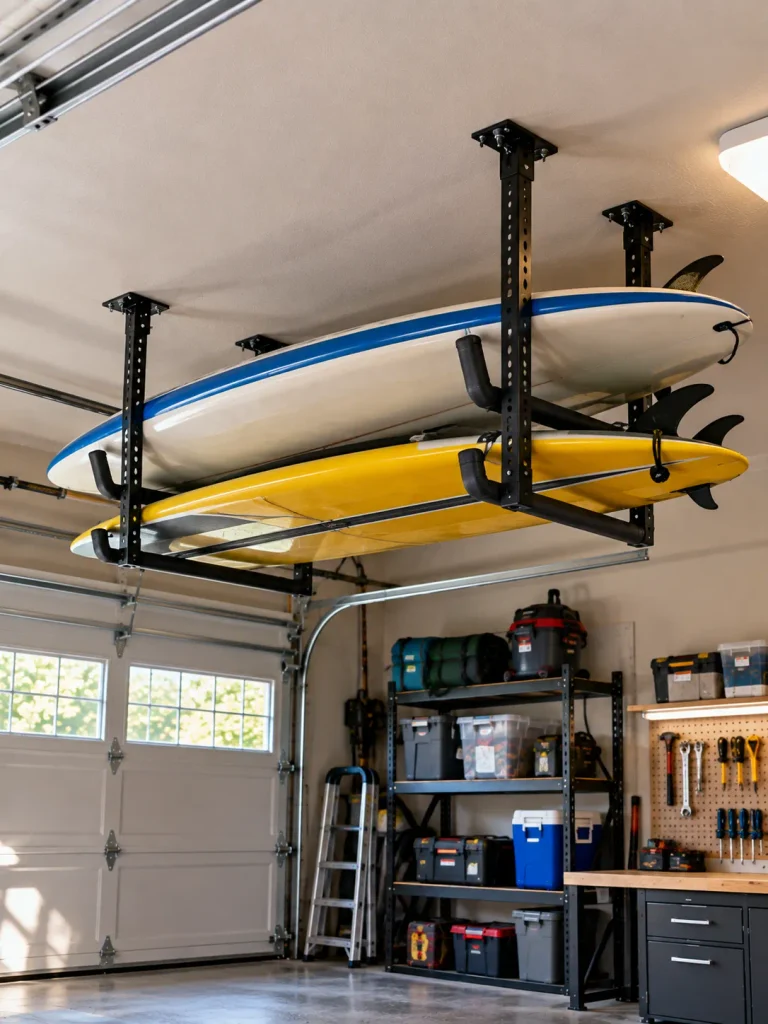

12. 🏄 Ceiling-Mounted Surfboard Rack

Surfboards are long, awkward, and usually too valuable to leave lying across a garage floor.

A dedicated ceiling system gets them above the car while keeping them supported along their length.

Load: Up to 100 lbs for a comparable heavy-duty board rack | Mount: Ceiling structure | Best for: Surfboards and paddleboards

StoreYourBoard’s heavy-duty board racks show how padded steel support systems can carry up to 100 pounds per level, although that particular product is wall-mounted rather than a ceiling system.

For a true ceiling installation, use hardware specifically designed for overhead mounting and follow the rack manufacturer’s structural requirements.

The important detail is not the brand.

It is supporting the board without creating a concentrated load or allowing it to slide.

13. 📏 Overhead Rack for Long Pipe and Trim

Long boards and trim create an unusual storage problem because their length matters more than their weight.

Start by measuring the material and the ceiling area. Next, locate the joists that can accept the rack hardware. Then position the support points so the material cannot sag excessively.

A heavy-duty overhead rack such as Proslat’s ProRack is rated at 800 pounds when properly mounted to studs, giving it substantial capacity for bulky storage.

For lumber, pipe, or trim, however, do not simply use the maximum number because the material fits.

Distribute the load.

Support long pieces at multiple points and keep the stored material secured against movement.

Load capacity: Up to 800 lbs for the referenced ProRack system
Mounting: Structural studs/support points
Height range: Product dependent
Why it works: Uses overhead length for long materials that are awkward on the floor.

14. 🛶 Ceiling-Mounted Folding Kayak Rack

Unlike a fixed kayak rack, a folding overhead system can reduce its own footprint when the kayak is not being stored.

That matters in garages where the ceiling is shared with lighting, a garage door opener, or other equipment.

A fixed hoist is usually cheaper and simpler.

A folding mechanism makes more sense when you want the storage hardware itself to stay compact when empty.

Verdict: Pick the folding system when ceiling clearance is tight and you want the hardware to occupy less space when the kayak is away.

For comparison, dedicated kayak hoists such as the StoreYourBoard model are rated to 150 pounds and designed around structural ceiling mounting.

15. 🧊 Pulley System for Heavy Coolers

The most common mistake with a pulley system is confusing mechanical advantage with increased load capacity.

A 2:1 pulley can make a load feel easier to lift, but that does not mean the ceiling or hardware can suddenly support twice the rated load.

For example, an Allied International ceiling hoist uses a rope-and-pulley mechanism, a locking system, and a 100-pound capacity.

Use a system like this for a cooler, cargo box, or similar bulky item only when its weight stays within the specific hoist rating.

Check the rope, hooks, mounting points, and locking mechanism before every major lift.

The result should be controlled movement, not a garage version of a carnival ride.

16. 🚲 Multi-Bike Ceiling Rack With Stacked Positions

Stacked bike storage saves serious floor space.

The concept is simple: multiple bicycles occupy different vertical positions instead of spreading across the garage floor.

A powered multi-bike system from SmarterHome uses a MyLifter unit rated at 100 pounds, with weight-sensing technology and an automatic lock.

Load: 100 lbs for the referenced lifting unit | Mount: Structural ceiling support | Best for: Families or cyclists storing multiple bikes

The system makes the most sense when you have three or more bikes and limited floor space.

Skip stacked overhead storage if your ceiling is too low to safely load and unload the bikes without hitting the vehicle or garage door.

🧱 How Do You Safely Mount Garage Ceiling Storage?

The ceiling structure matters more than the rack itself. A rack rated for 600 pounds cannot magically turn an unsuitable ceiling connection into a 600-pound structural support.

Before installation, identify the actual structural members.

Depending on the garage, that could mean joists or other engineered framing. Do not assume that drywall, plaster, or thin ceiling material can support a loaded rack.

OSHA’s material-storage guidance emphasizes securing stored materials against falling or collapse and not exceeding rack capacities.

For residential garages, follow the storage product’s installation instructions and, when the structure or load is uncertain, consult a qualified professional.

📦 What Should You Never Store Overhead?

Avoid putting extremely heavy, unstable, sharp, or hazardous objects overhead unless the system is specifically engineered and rated for them. Ceiling storage is usually best for bulky items that are relatively manageable to lift and secure.

Good candidates include:

• Empty seasonal bins
• Camping gear
• Lightweight decorations
• Kayaks
• Bicycles
• Paddleboards
• Ladders
• Coolers
• Lightweight luggage

Be more cautious with:

• Heavy machinery
• Dense boxes of books
• Large quantities of tools
• Unsecured metal materials
• Chemicals
• Objects that can roll or slide

OSHA’s general warehousing guidance recommends keeping heavier loads on lower or middle shelves and ensuring storage capacities are not exceeded.

That principle is especially sensible for a home garage: put the heaviest things where they are easiest to control.

🏁 Which Garage Ceiling Storage System Should You Choose?

Choose the system based on the object, access frequency, and structural requirements rather than the advertised maximum weight alone.

For seasonal storage bins, a fixed overhead rack gives you the most usable volume.

For bikes, a pulley hoist is compact and relatively inexpensive.

For kayaks, a dedicated hoist makes lowering and raising much easier.

For ladders, a ceiling rack keeps a long object completely away from the floor.

For heavier or frequently accessed storage, retractable and powered systems can justify their higher cost because they bring the load down instead of forcing you to climb.

The real breakthrough happens when you stop treating the ceiling as empty air.

It becomes another storage level.
